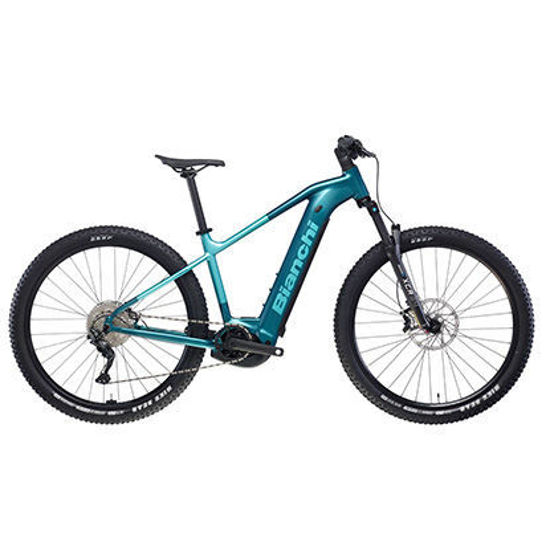

Picture of T-TRONIK X 9.2
Picture of T-TRONIK X 9.2

T-TRONIK X 9.2

Manufacturer: BIANCHI
  • Price: 1 390 000 ֏
  • 1 470 000 ֏
Bianchi E-MTB

  • Motor Unit

    1. Motor

      Bosch Performance Line BDU3460, 75 Nm - Purion 200

    2. Battery

      Bosch Powertube 600 Wh Horizontal

  • Frameset

    1. Frame

      Bianchi T-Tronik X, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 120 mm, Internal cable routing in steerer, 800 Wh battery compatible sizes SM-MD-LG-XL

    2. Fork

      Suntour XCR34X, Air, 120 mm travel, Steerer tube 1,5" tapered, 34 mm stanchions, 15x110 Boost axle, Rotor: minimum 180 mm, maximum 203 mm

    3. Headset

      FSA 1.5" for tapered fork steerer, Dual side internal cable routing

  • Drivetrain

    1. Shifters

      Shimano Deore SL-M4100, Rapidfire Plus

    2. Rear Derailleur

      Shimano Deore, RD-M4120, 10sp, Shadow design

    3. Crankset

      FSA CK-320/IS, Aluminium DieCast, Crank length: 170 mm

    4. Chain

      KMC e10S EPT, Anti-Rust

    5. Cassette

      Sunrace CSMS2, 11-42T

  • Brakes

    1. Brakes

      Shimano Deore BR-MT410, 2 piston, resin pad

    2. Brake Levers

      Shimano Deore BL-MT401

    3. Rotor

      FRONT: Shimano SM-RT30, 203 mm / REAR: Saccon CDM80FD, 180 mm

  • Wheels

    1. Wheels

      Velomann 622x30, 32 hole; Front hub: Shimano TC500 Thru axle; Rear hub: Shimano TC500 Thru axle

    2. Tire

      Obor Mike Bear, 29"x2,35", 60 TPI

  • Cockpit

    1. Stem

      Velomann Viper0, alloy, Diameter 28.6 mm, Barbore 31,8 mm Size: 60 mm

    2. Handlebar

      Velomann Aluminium, Rise 15 mm, Barbore 31.8 mm, Width 740 mm Size: 740 mm

    3. Grips / Extensions

      Herrmans Luna lock 130 mm

  • Saddle

    1. Seatpost Clamp

      Ursus Alloy, Quick Release, Diameter 34,9 mm

    2. Seatpost

      Velomann AL2014, Diameter: 31,6 mm, Seatback: 0 mm for size SM; Dropper, travel 125 mm for size MD-LG; Dropper, travel 150 mm for size XL

    3. Saddle

      Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm
